The Arboreal LED Display: A Synthesis of Nature and Technology
Blending organic elegance with cutting-edge illumination, the arboreal LED display redefines architectural aesthetics and functional storytelling. Its branching form and naturalistic design introduce a harmonious visual element to any space, while its integrated lighting capabilities deliver dynamic information and captivating visual experiences.
I. Design & Aesthetic Features

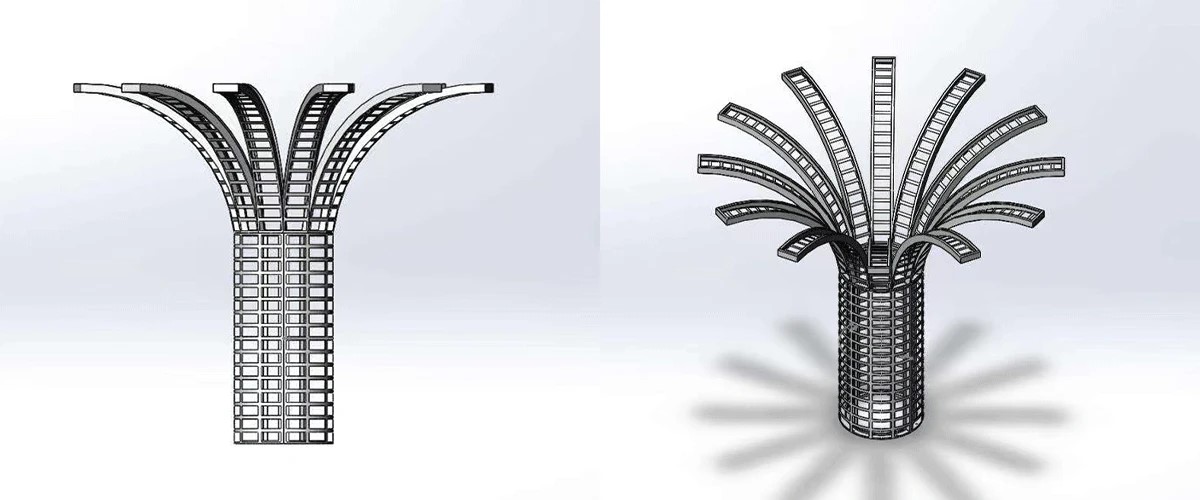

Biomimetic Architecture
Inspired by the graceful forms of nature, the display's intricate branch structure and trunk design create an artistic focal point. It seamlessly integrates with both interior and exterior environments, transforming ordinary spaces into immersive, nature-inspired settings.Customizable Configurations
The tree's dimensions, branch density, and overall shape can be tailored to specific spatial and thematic requirements. Whether a minimalist sapling for a lobby or a sprawling canopy for an atrium, each design is uniquely crafted to complement its surroundings.
II. Functional Applications
Ambient Storytelling
Beyond its striking appearance, the tree serves as a dynamic medium for brand narratives or artistic displays. Lighting sequences and color transitions can be programmed to reflect themes, evoke emotions, or highlight branding elements.Intelligent Environmental Integration
Equipped with an intelligent control system, the display can synchronize its lighting with ambient conditions, music, or scheduled events. This adaptability enhances its role as both an interactive art piece and a responsive environmental feature.
III. Implementation Scenarios
Corporate & Hospitality Spaces

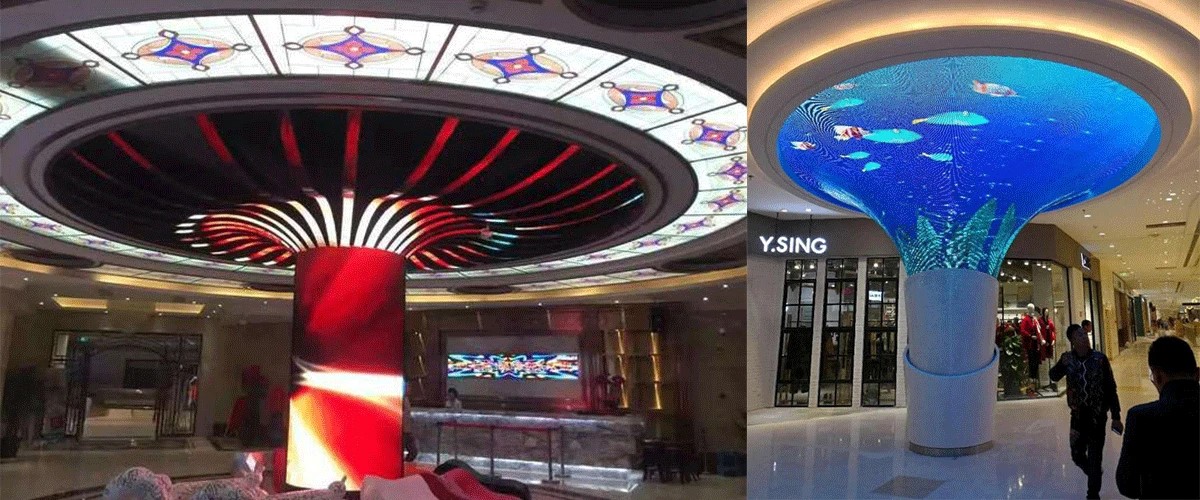

In hotel atriums, corporate lobbies, or luxury retail environments, the arboreal display creates a welcoming and sophisticated atmosphere. Its presence conveys a commitment to innovative design and enhanced visitor experiences.Public & Cultural Venues
Within parks, museums, or exhibition centers, the structure functions as both a landmark and an information point. Its ability to display wayfinding cues or cultural content makes it a versatile centerpiece for public engagement.Themed Entertainment
For events, stage designs, or themed installations, the tree can be adapted to create enchanting environments—from mystical forests to futuristic landscapes—showcasing its versatility in crafting immersive worlds.
In Summary
The arboreal LED display transcends conventional signage by uniting artistic form with technological function. It represents a new paradigm in environmental design, where technology not only informs but also inspires, creating memorable experiences that resonate deeply with all who encounter it.
Indoor soft flexible LED display (240x120mm)
| Pixel Pitch (mm) | P0.9 | P1.25 | P1.579 | P1.875 | P2 | P2.5 | P3 | P4 |
|---|---|---|---|---|---|---|---|---|
| Pixel Configuration | IMD-M09 | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 1,137,778 | 640,000 | 401,111 | 284,444 | 250,000 | 160,000 | 111,111 | 62,500 |
| Module Resolution (Pixel) | 256x128 | 192x96 | 152x76 | 128x64 | 120x60 | 96x48 | 80x40 | 60x30 |
| Module Size (mm) | 240x120 | 240x120 | 240x120 | 240x120 | 240x120 | 240x120 | 240x120 | 240x120 |
| Driving Mode (Duty) | 1/64 | 1/48 | 1/38 | 1/32 | 1/30 | 1/24 | 1/20 | 1/15 |
| Brightness (CD/㎡) | 650 | 650 | 700 | 700 | 700 | 700 | 650 | 650 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 480 | 480 | 480 | 480 | 480 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protecting Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
Indoor soft flexible LED display (320x160mm)
| Pixel Pitch (mm) | P1.25 | P1.29 | P1.53 | P1.56 | P1.86 | P2 | P2.5 | P3.076 | P4 |
|---|---|---|---|---|---|---|---|---|---|
| Pixel Configuration | SMD1010 | SMD1010 | SMD1212 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 640,000 | 600,625 | 422,500 | 406,406 | 288,906 | 250,000 | 160,000 | 105,625 | 62,500 |
| Module Resolution (Pixel) | 256x128 | 248x124 | 208x104 | 204x102 | 172x86 | 160x80 | 128x64 | 104x52 | 80x40 |
| Module Size (mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Driving Mode (Duty) | 1/64 | 1/62 | 1/52 | 1/51 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 |
| Brightness (CD/㎡) | 600 | 600 | 600 | 600 | 600 | 650 | 700 | 700 | 600 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 480 | 480 | 480 | 420 | 480 | 480 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | 1,920/3,840 | 1,920/3,840 | 1,920/3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protecting Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
